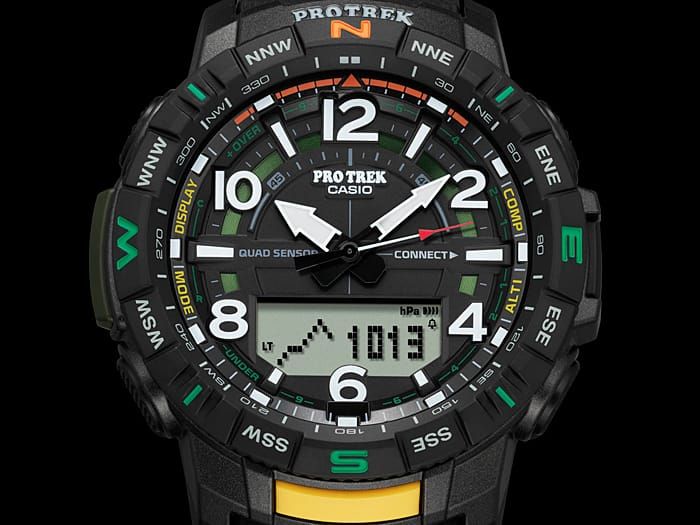

A PRO TREK model that improves outdoor usability by connecting to the specific CASIO WATCHES application via Bluetooth®. It has a quad sensor capable of measuring the number of steps, orientation, altitude/barometric pressure and temperature. It records the calories burned, the altitudes obtained by the watch and the routes obtained through the smartphone's GPS in the application.

Automatic time adjustment is carried out worldwide through the simplification of various settings. It can also automatically correct the altimeter and calculate sunrise and sunset times. In addition, it allows you to activate or deactivate modes and enjoy customization by changing the screens of the application.

The fine resin back cover uses a structure that integrates with the lugs. Both the button protection and the case have been made more resistant. The wide dial uses Arabic indexes to ensure high visibility.

Metal parts are used for the orientation indicator and colors reminiscent of the outdoors are used as details. In addition, the entire surface of the urethane strap has a 3D texture to prevent the strap protector from slipping, improving ease of use in outdoor environments.

57.5 × 50.8 × 15.8 mm

Weight

icon-question

64 g

Case and bezel material

Resin

Strap

Resin strap

Water resistance

Water resistant to a depth of 10 bar

Environmental resistance

Low-temperature resistance (-10 ℃/14 ℉)

Time setting

Bluetooth: Connects to a smartphone and automatically sets the time

Power source and battery life

Approximate battery life: 2 years in CR2025

Sensor function

Step count with a 3-axis acceleration sensor: Step count display range between 0 and 999,999 Energy saving: Automatic entry of sensor sleep state after a fixed period of inactivity

Altimeter measurement range: Between -700 and 10,000 m (-2300 and 32,800 ft) Measurement unit: 1 m (5 ft) Indication graph on the altitude difference hand Manual memory measurements (up to 14 records, each including altitude, date and time) Automatic log data (high/low altitudes, cumulative ascent and descent) Others: Relative altitude readings (±100 m/±1000 m) and selectable measurement interval: 5 seconds or 2 minutes (1 second only for the first 3 minutes) *Change between meters (m) and feet (ft)

Barometer Measuring range: Between 260 and 1100 hPa (between 7.65 and 32.45 inHg) Measuring unit: 1 hPa (0.05 inHg) Indication on the differential pressure gauge (±10 hPa) Atmospheric pressure trend graph (last 20 hours or last 56 hours) Barometric pressure trend information alarm (the acoustic signal and arrow indicate significant changes in pressure) The atmospheric pressure trend graph can show the last 20 minutes or the last 56 minutes of measurements. The indication on the pressure differential hand shows values in units of ±0.1 hPa. *Switch between hPa and inHg

Digital compass Measures and displays orientation as one of 16 points Measuring range: between 0 and 359° Measuring unit: 1 ° 60 seconds of continuous measurement Indication on the north hand Magnetic declination correction Direction calibration (bidirectional calibration, figure-of-eight calibration and automatic calibration)

Thermometer, measuring range: -10 to 60 ℃ (14 to 140 ℃) Measuring unit: 0.1 ℃ (0.2 ℃) *Change between degrees Celsius (℃) and degrees Fahrenheit (℉)

Smartphone Link functions / Application connectivity

Smartphone Link function

Mobile Link (wireless link with Bluetooth®)

Applications

CASIO WATCHES

Application connectivity function

Automatic time setting

Easy watch setting

World time for approximately 300 cities

Life log data management

Location indicator

Location Memory

Customization of mode/display change

Automatic altitude correction

Phone finder

Outdoors

Glass

Mineral crystal

Bezel features

Address bezel

Watch functions

World time

World time with 38 time zones (38 cities + UTC), daylight saving on/off and city/world time swapping

Sunrise/sunset display

Sunrise and sunset times display

Sunrise and sunset times on a specific date

Stopwatch

1/100 sec. stopwatch 00'00''00~59'59''99 (for the first 60 minutes) 1:00'00~23:59'59 (after 60 minutes) Measuring unit: 1/100 sec. (during the first 60 minutes) 1 second (after 60 minutes) Measuring modes: Elapsed time, split time and first and second place times

Timer

Countdown timer Measuring unit: 1 second Countdown range: 24 hours Countdown start time setting range: Between 1 second and 24 hours (1 minute and 1 hour increments)

Alarm / time signal

5 daily alarms

Time signal

Lighting

Double LED light, LED light for the dial (automatic LED light, neon illuminator, selectable illumination duration (1.5 or 3 seconds) and luminosity), LED backlighting for the digital display (automatic LED light, super illuminator, selectable illumination duration (1.5 or 3 seconds) and luminosity)

Light color

LED: white

LED: Neon illuminator (black light LED)

Calendar

Full auto-calendar (to year 2099)

Silent function

Button-press tone on or off

Accuracy

Accuracy: ±15 seconds per month (without Mobile Link function)

Other options

12- and 24-hour formats

Hand-change function

Normal time display: Analog: 3 hands (hours, minutes [hand moves every 10 seconds], seconds) Digital: Hours, minutes, seconds, a.m./p.m., month, date and day
